Catalyst Sequencer User Manual v1.0

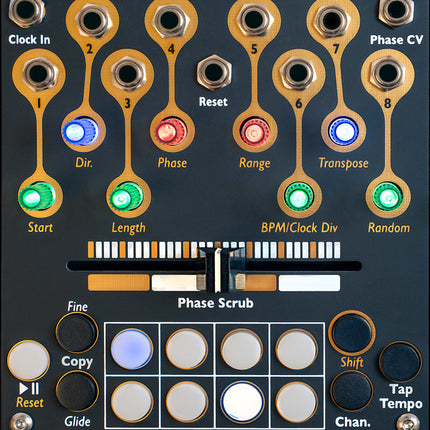

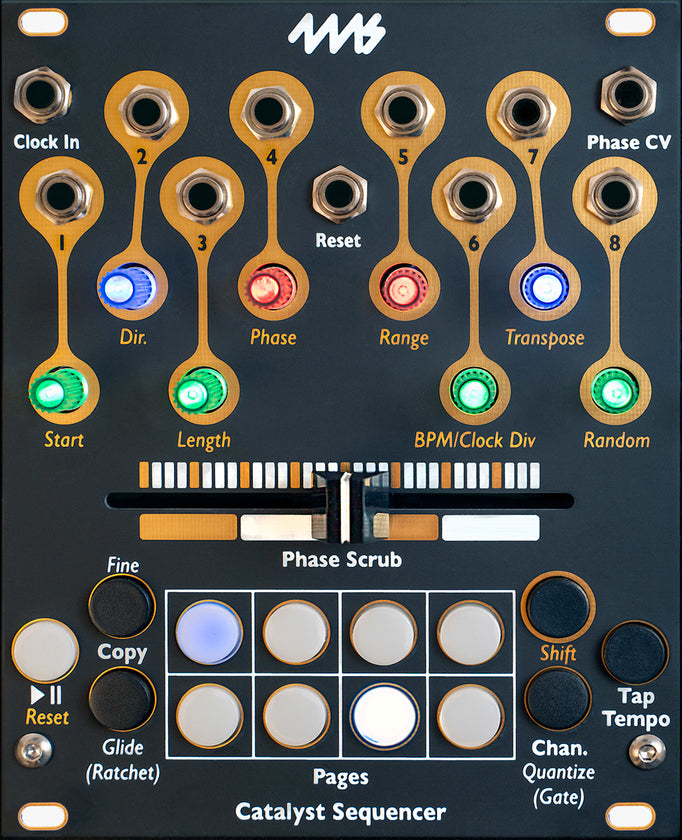

The Catalyst Sequencer combines a traditional clocked step-sequencer with an unconventional phase-based sequencer to produce a new paradigm in sequencing. Eight precision CV sequencer channels can be simultaneously driven by a clock, a phase CV, or scrubbed manually with the crossfader.

Each of the eight channels has its own sequence length, quantizer, transposition, clock divider, randomization, voltage range (max -5V to +10V), and selectable CV (precise 16-bit resolution) or Gate mode.

Phase-based sequencing is an advanced form of sequencing where each step is selected by CV. The Catalyst Sequencer has a smooth, responsive crossfader that scrubs the sequence, playing it forward or backwards to track your motions. Patching in a CV signal will do the same: a ramp-up CV plays the sequence forwards, a ramp-down plays it backwards, a triangle plays it ping-pong, and complex waveforms generate new interesting rhythmic and melodic patterns.

The Catalyst Sequencer can also turn into a Catalyst Controller! Hold down a special button combination to change between sequencer and macro controller modes. If you end up liking the Controller more, you can even remove the double-sided faceplate, flip it over, and re-install with the Controller artwork visible.

Based on the original Catalyst module from Emblematic Systems.
