Analogue Systems - RS-15: 6U Rack Mount Case
$599.00
Description
Manufacturer Description:

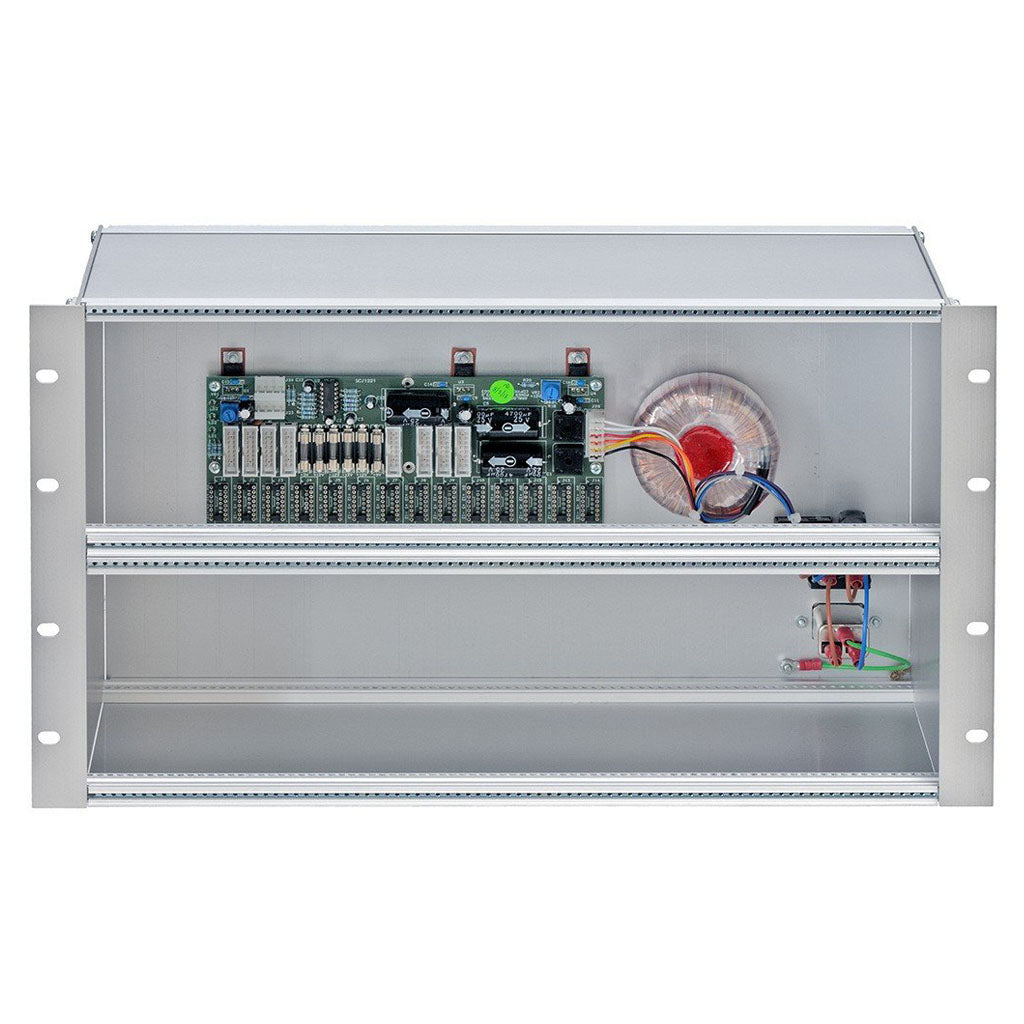

19" 6U rack-mount case for Eurorack modules.The powerful power supply provides you with1500mA per rail. In addition the power supply generates a +5V voltage, necessary for exaple for Analogue Systems´ modules with digital circuitry.
A very good choice for small to medium sized, two-row modular systems built mostly with Analogue Systems modules.
The power supply offers 1500mA current per rail, that means 1500mA for +12V and 1500mA for -12V and it also generates a +5V voltage. It can run on 115V or 230, you just need to set the switch on the rear correctly.
Generaly the power supply is constructed very properly and in addition to the mains fuse (3.15A) there are six fuses for the secondary voltages +12V, -12V and +5V on the circuit board.
Generaly the power supply is constructed very properly and in addition to the mains fuse (3.15A) there are six fuses for the secondary voltages +12V, -12V and +5V on the circuit board.
Besides 14 dedicated connectors for Analogue Systems modules the power distribution board also has eight connectors for Eurorack modules.
Unlike other Eurorack cases Analogue Systems use module screws and mounting strips with 2.5mm threads! The special 2.5mm screws are supplied with the case.
Eurorack
Eurorack is Doepfer's 3U modular format
