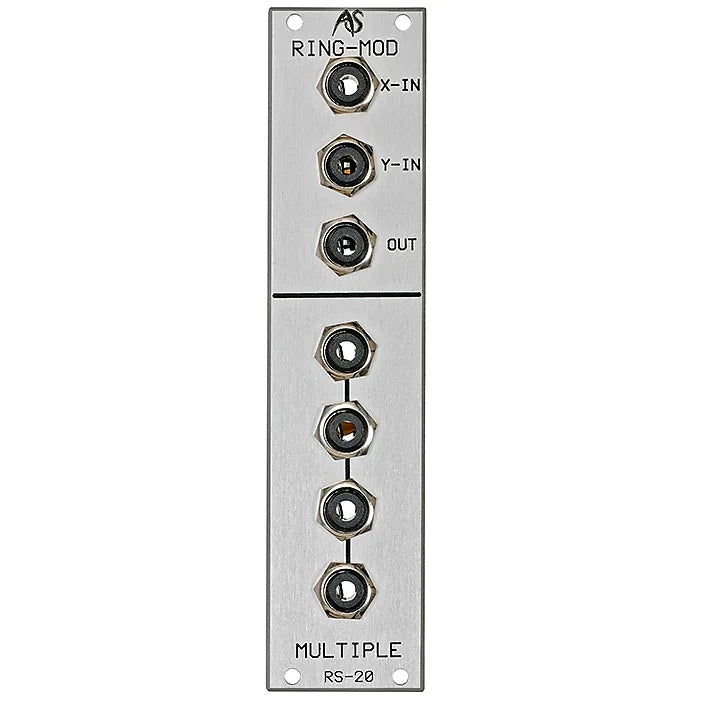

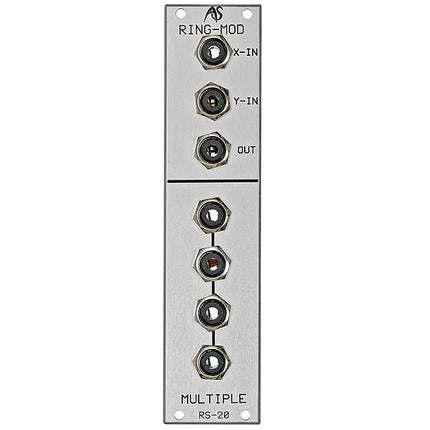

This module contains an analog high-quality ring modulator and an 1x4 multiples. AC-coupled ring modulator, based around the AD633 multiplier IC. The original frequencies are suppressed and you can hear only the sum of the frequencies (X+Y) and the difference (X-Y). The ring modulator works very clean. If only one signal is connected you won´t hear anything at the output. That is not the case with most ring mods as often you hear a bleed thru.
All modules by Analogue Systems come ready to use with five years warranty mounted in the by the customer preferred rack or cabinet.
Power consumption: 10mA
Depth: 52mm
HP : 6
