Name: Corsynth - C102: Voltage Controlled LFO
Brand: Corsynth
Price: 250.00 USD
Availability: InStock

Moog Modular [5U]

Play/Pause

Product formCorsynth

Corsynth - C102: Voltage Controlled LFO

Manufacturer Description:The C102 Voltage Controlled LFO is a voltage controlled low frequency oscillator with five waveforms available simultaneously.With three frequency... Read more Read more

Description

Manufacturer Description:

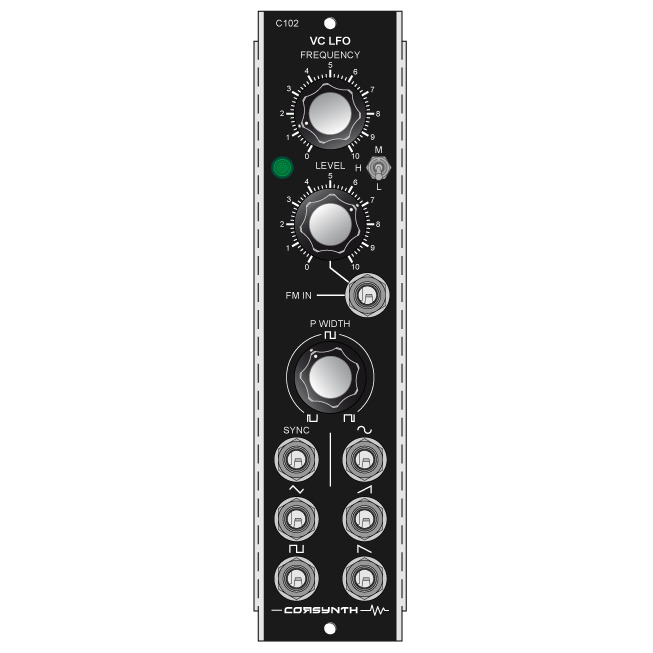

The C102 Voltage Controlled LFO is a voltage controlled low frequency oscillator with five waveforms available simultaneously.

With three frequency ranges ( L, M, H ) the VC LFO can oscillate from 7 minutes per cycle up to 800 Hz. Using the FM MOD input this range can be
extended from 12 minutes per cycle up to 1,3 KHz. With this wide frequency range, the LFO can be used to produce really slow and subtle
modulations and audio frequency modulation (FM sounds).

Another important feature is that the oscillation frequency can be voltage controlled using the FM input. You can modulate the frequency with an envelope, other LFO , sequencer etc. Using the FM input, it’s also possible to create new waveforms like hyperbolic sine wave, hyperbolic cosine wave and more. Just connect one of the VC-LFO outputs to its own FM input and turn up the FM level potentiometer.

Also the C102 Voltage Controlled LFO has a Sync / Reset input (not available in L mode). Every time a trigger signal is detected, the LFO will restart the waveform to the beginning of its cycle.

Main Characteristics

Three frequency ranges:

L : from 7 minutes to 1 Hz
M : from 0.1 Hz to 35 Hz
H : from 2.5 Hz to 800 Hz

Five waveforms available simultaneously:

Sine
Triangle
Saw
Inverse Saw
Pulse ( with variable pulse width)

Sync/Reset input

Frequency Modulation input with attenuator

Pulse Width control

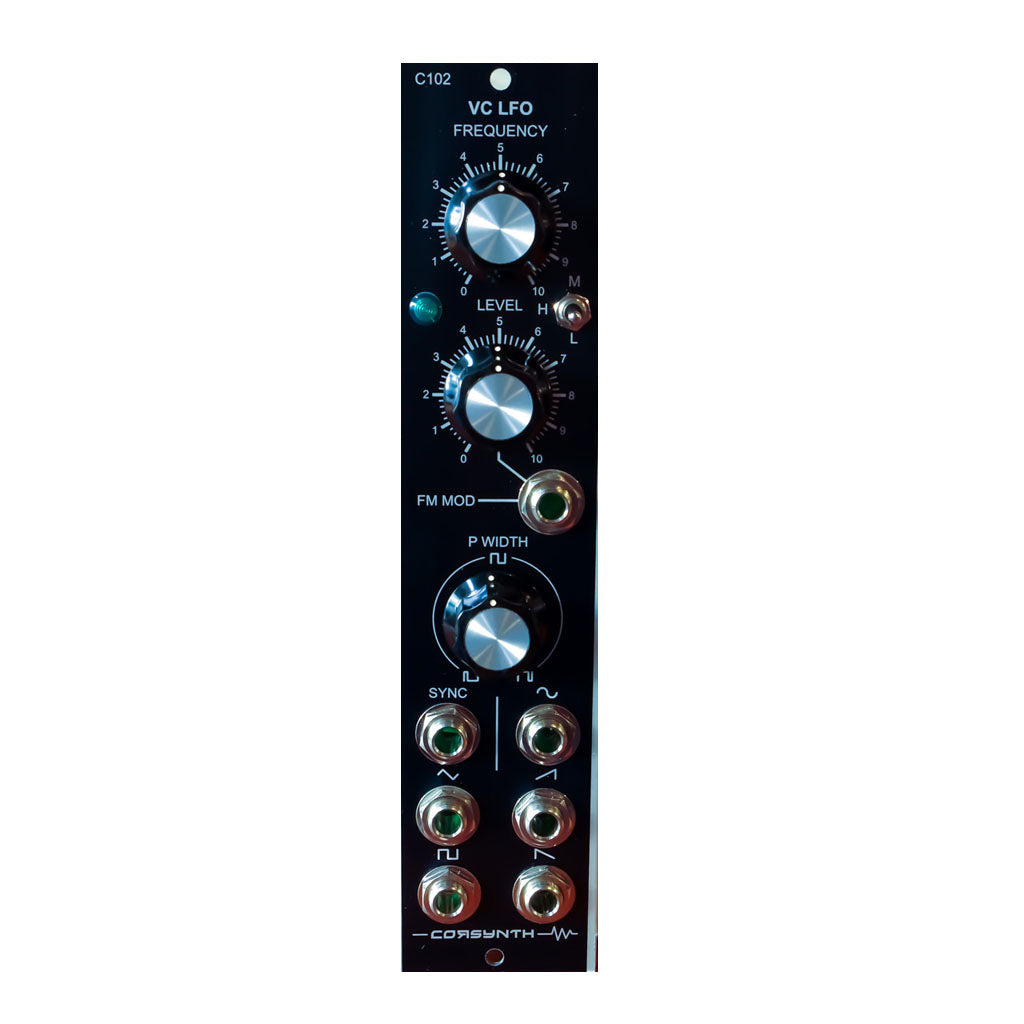

The C102 Voltage Controlled LFO is built using high quality electronic components, Switchcraft jacks, NKK switches, Cosmo knobs (the same used by Moog Modular) , black anodized aluminium front panel (like the original Moog Modulars).

Technical Data:

Module Format: 5U, MU format (Synthesizers.com, Moog)

Module Width: 1 MU (Moog Unit)

Power: +15V@33,1mA ( with LED On ), -15V@23,9mA (with LED On)

Power connectors: Synthesizers.com, MOTM (4 pin)

Frequency Range: 7 minutes – 800 Hz

Signal Levels: 10 Vpp ( -5V to +5V )
