Corsynth - C104: Odyssey of Sound VCO

Manufacturer Description: The C104 Odyssey of Sound VCO is a voltage controlled oscillator based in the discrete core of the... Read more Read more

Description

Manufacturer Description:

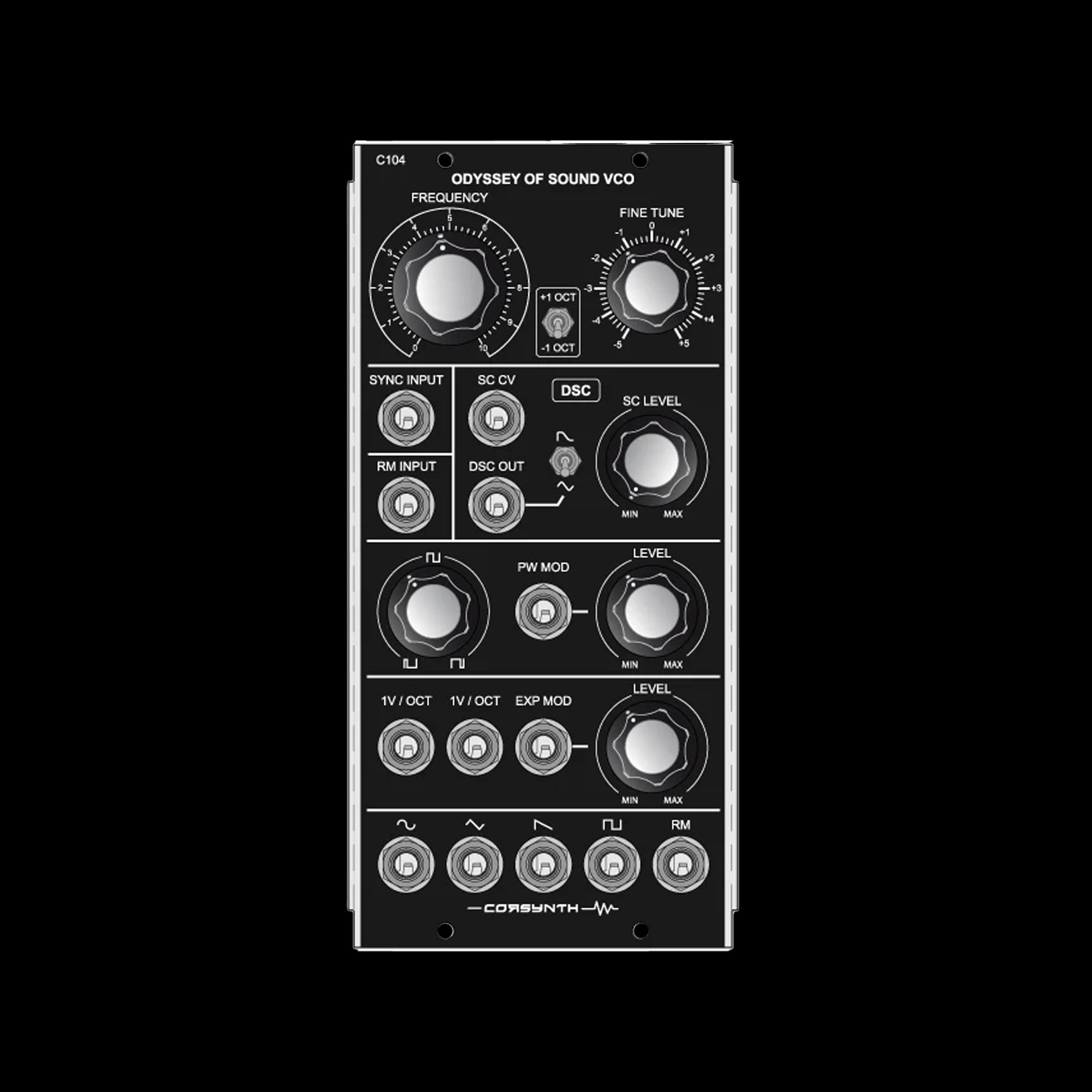

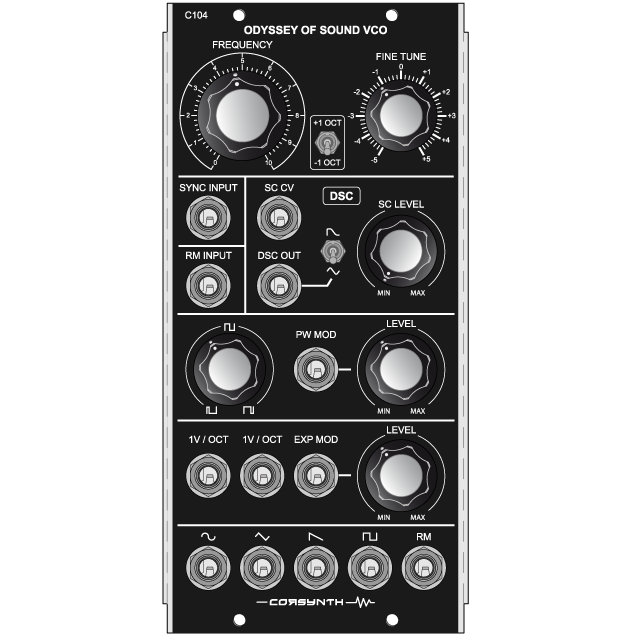

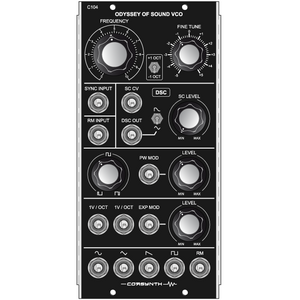

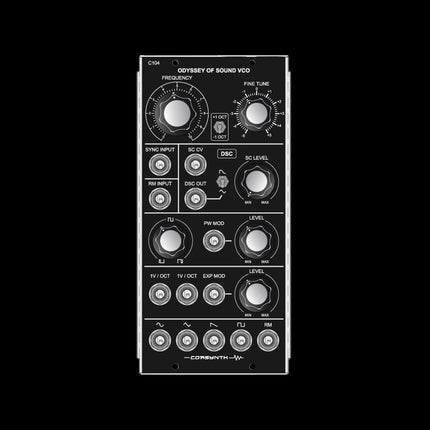

The C104 Odyssey of Sound VCO is a voltage controlled oscillator based in the discrete core of the ARP VCOs ( 2600, Odyssey...)

The oscillator has four waveforms available simultaneously ( sine, triangle, saw and square with variable pulse width ). The square wave pulse width goes from 10% to 90% and can be over-modulated. This feature makes possible to created sounds that are not possible in other VCOs.

In addition to the VCO, the module includes a Ring Modulator ( CMOS ) and a Diode Soft Clipping circuit that can be voltage controlled. The RM and the DSC have independent outputs.

VCO
Wide frequency range from 5Hz to 30KHz.
Perfect tracking over at least 8 octaves.
Coarse and fine frequency controls.
+/- one octave switch.
Temperature compensated.
Four waveforms available simultaneously : Sine, triangle, saw, square.
Square wave pulse width 10%-90% allowing overmodulation.
Hard sync input.
Two 1V/Octv inputs.
One exponential modulation input with level control.

Ring Modulator ( RM )
CMOS based.
Independent ouput.
VCO Square wave is internally connected to the Ring Modulator.

Diode Soft Clipping ( DSC )
Soft clipping level control.
Soft clipping level can be voltage controlled.
Independent output.
Two waveforms available, ( triangle and saw ) selectable by switch.

All these features makes the C104 Odyssey of Sound VCO a versatile oscillator with a sonic range not available in other VCOs.

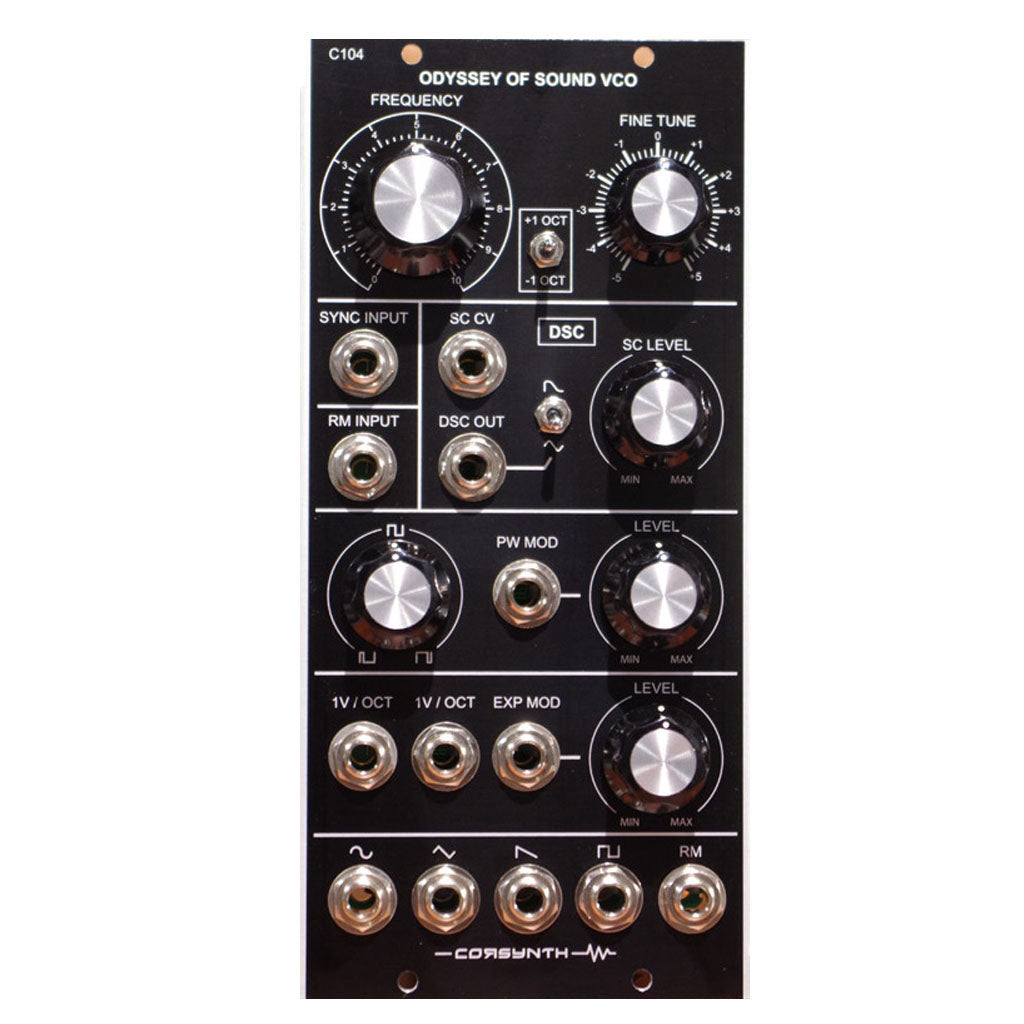

This module is built using high quality electronic components, Switchcraft jacks, NKK switches, Cosmo knobs (the same used in the Moog Modulars) , black anodized aluminium front panel ( like the original Moog Modulars).

Technical Data:
Module Format : 5U, MU format ( Synthesizers.com, Moog )
Module Width : 2 MU ( Moog Unit )
Power : +15V@54mA , -15V@48mA
Power connectors : Synthesizers.com , MOTM ( 4 pin )
Frequency Range : 5Hz to 30KHz
Signal level : 10Vpp ( +/- 5V )
