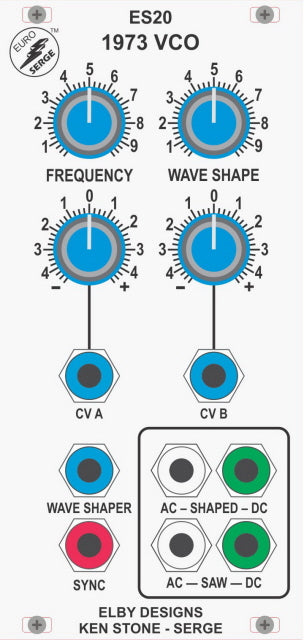

The ES20 starts with a classic sawtooth oscillator core and adds a voltage controlled wave shaper to the output.

Unlike most conventional VCOs' the ES20 does not have a 1V/Octave input. However the scalable input [CV A] of the ES20 can be used in conjunction with the [FREQUENCY] control to provide tonal tracking.The [CV B] knob can be used as a FINE TUNE control for the oscillator. The wave shaper allows the [SHAPED] output to swing from a sine wave to a modified sawtooth output and can be both manually and voltage controlled.

Consider the ED720 ES VCO for applications requiring high-stability core with 1V/Octave control
