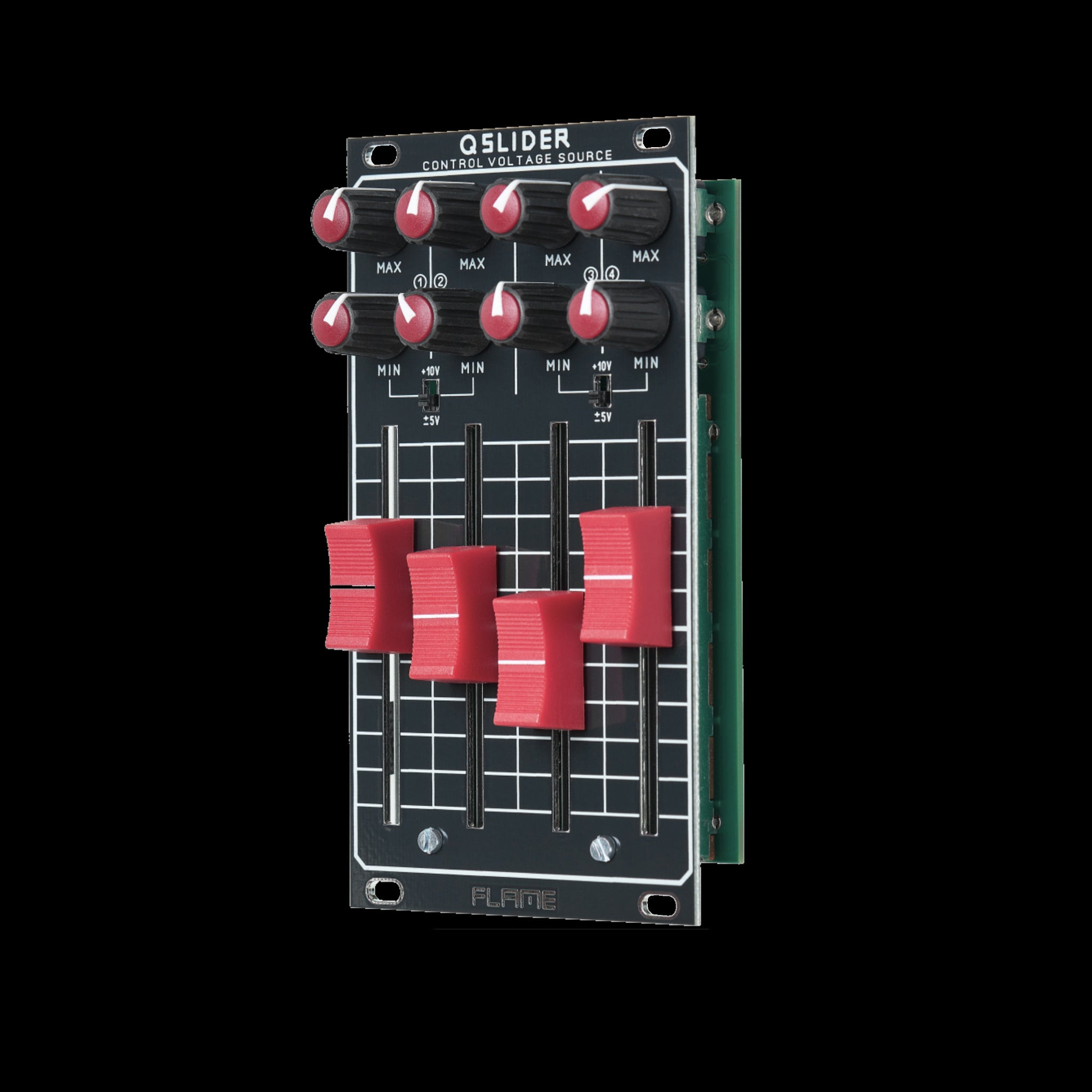

QSlider Black - Versatile macro controller with four faders from Flame.

The QSlider Black is a flexible analog CV source with four 60 mm faders - ideal for simultaneously controlling multiple parameters in your modular system. Whether as a macro controller for filters, amplifiers or effect parameters - the QSlider allows intuitive and direct intervention in the sound.

The min/max controls can be used to adjust the effective range of each fader. The Min control determines the output voltage in the zero position, while the Max control sets the voltage in the end position. This allows you to define individual control ranges and still use the entire fader length.

An inverted output (with swapped min and max values) enables counter-acting controls, which means that the QSlider can also be used as a crossmix fader or for simultaneous modulation in opposite directions.

Two of the four channels can be switched in pairs between unipolar or bipolar (0...+10V or ±5V), which allows even more flexible adaptation to different applications.

The output sockets are housed on a separate 4HP panel and equipped with an approx. 40 cm long connection cable so that you can position them flexibly in your system - perfect for seamless integration of multiple modules.

Features:

• Flexible CV source in the style of a macro controller
• Four 60 mm sliders
• Output sockets on the included expansion module for flexible positioning in your system
• CV range adjustable between 0 and 10V or ±5V and with min/max for each fader
