Analogue drum voice with a broad range of applications
Description
Boom!! is an analogue drum voice with a broad range of applications.
The heart of the module is a VCO which is built around one half of a LM13700. The VCO has a HIGH/LOW switch as well as a SWEEP control, which defines it’s response to the onboard envelope.
The other half of the LM13700 has been carefully crafted into a release envelope generator, which has a FAST/SLOW switch in addition to a RELEASE control. As a bonus, the input of the envelope is velocity sensitive, allowing for a dynamic response.
Additionally, there is an envelope output, which can be used to drive external modules.
Boom!! can be used to create bass drums, tom toms, chirps, blips and clicks.

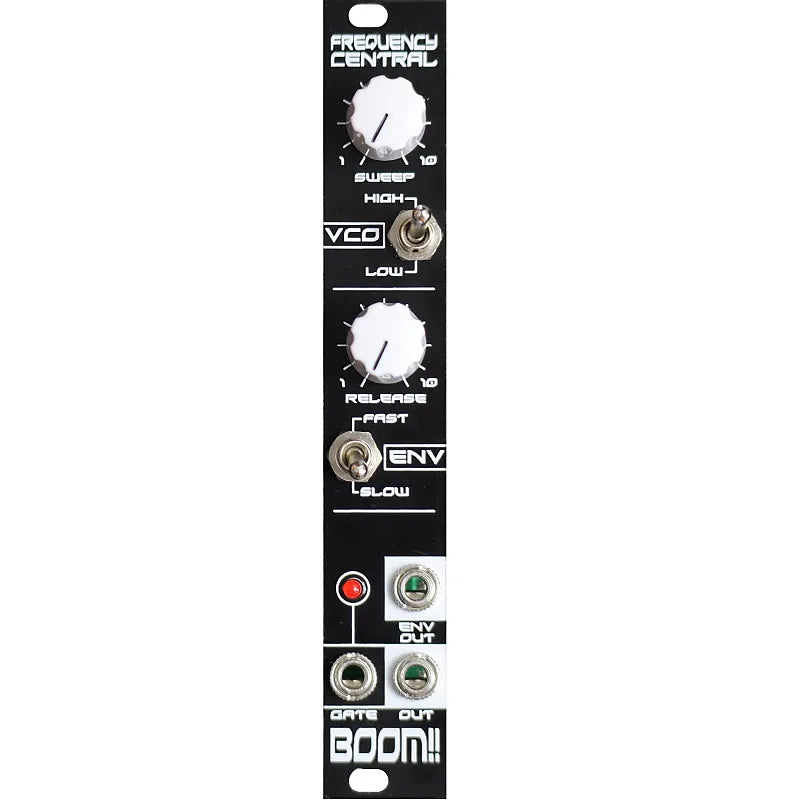

![Frequency Central - Boom!! [CLEARANCE]](http://www.noisebug.net/cdn/shop/files/prf7pcgfssyuj57qulw7.webp?v=1704929727)
