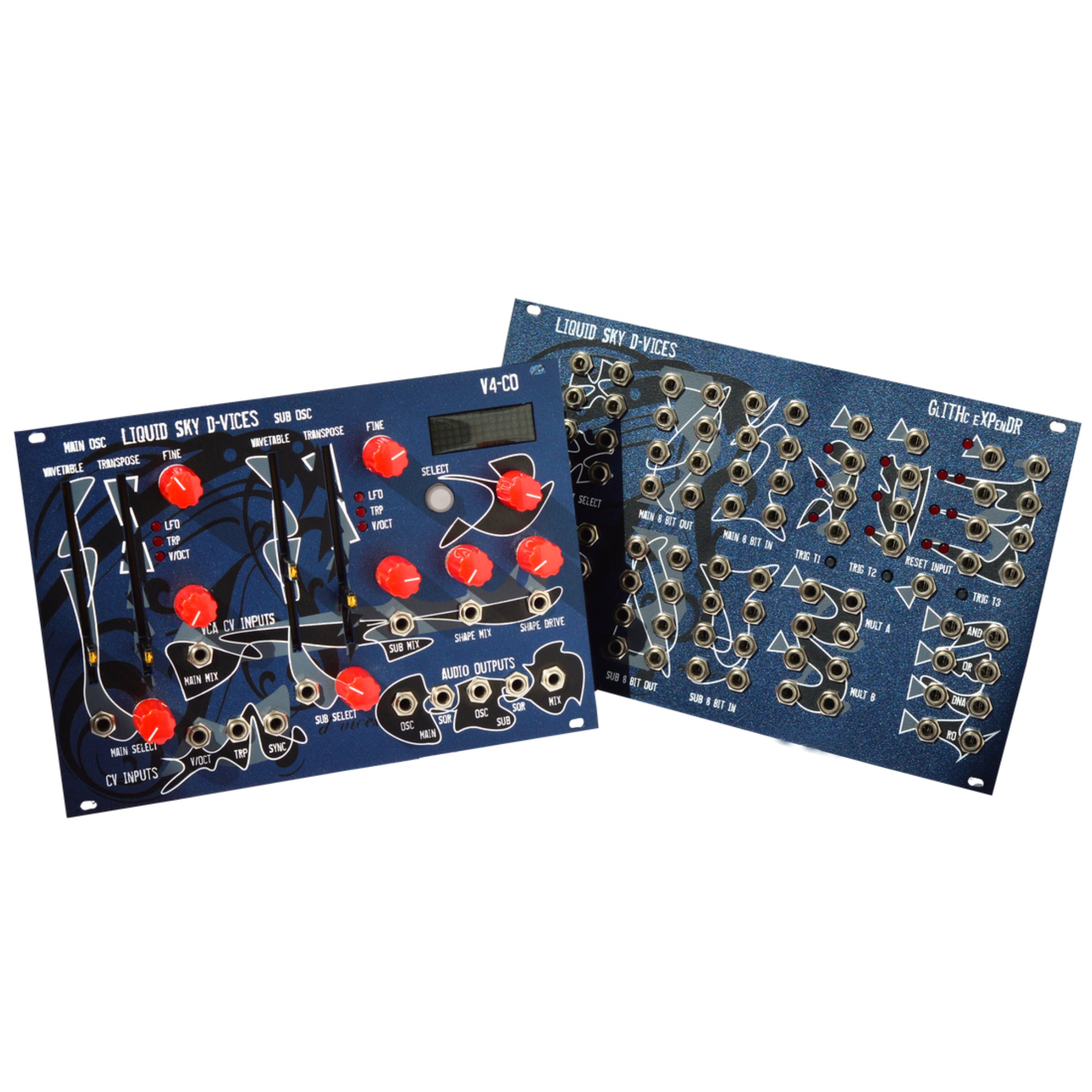

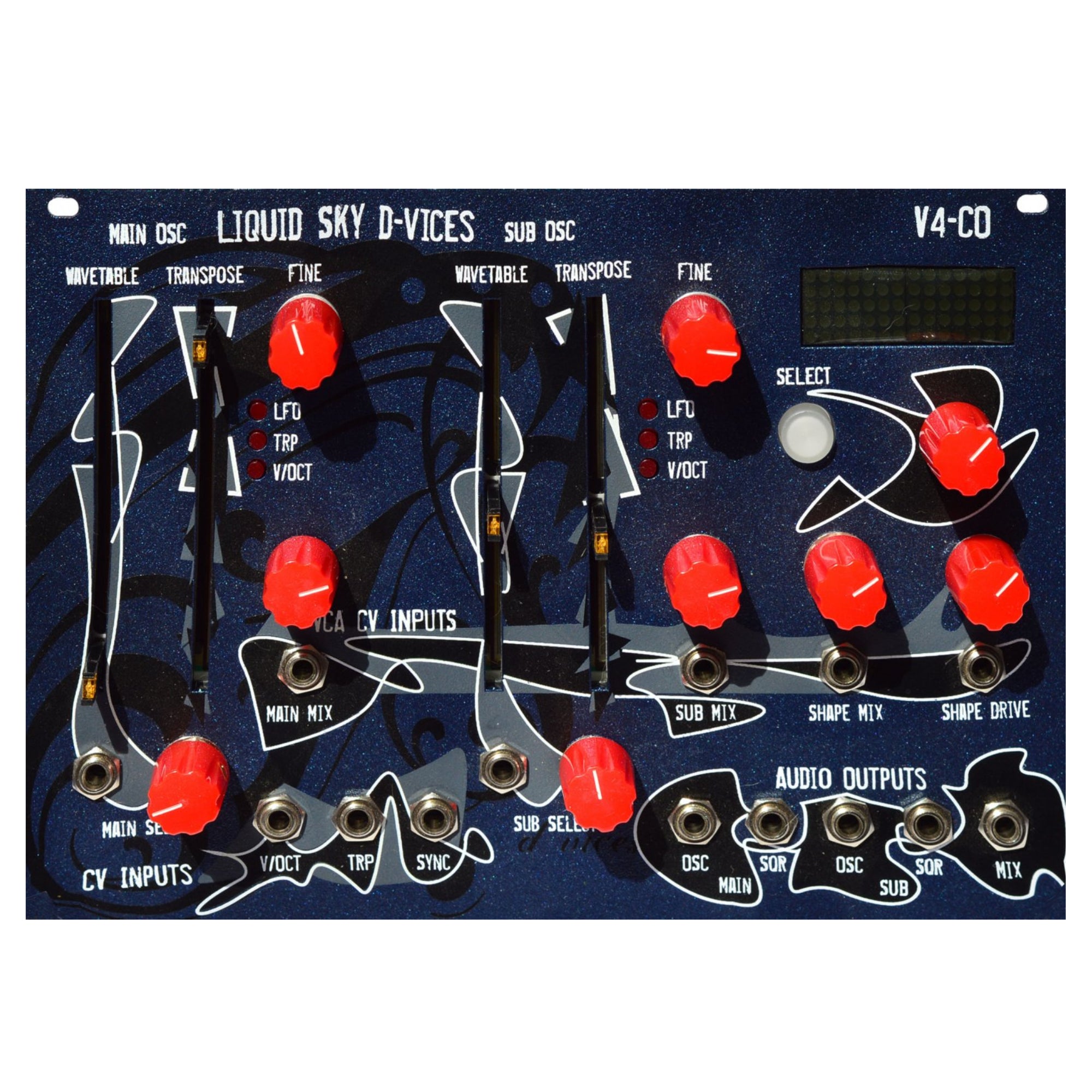

Liquid Sky D-Vices - V4CO + Glithc Expendr

• dual 8-bit wavetable oscillator, each with separate sub-bass oscillator
• 16×16 waveforms, different for each oscillator
• each module has a base (16 x 6) set and an unique set (16 x 10) of waveforms
• 8 octaves
• detuning, hard sync, and waveform shuffle
• analog VCA for each oscillator
• analog overdrive controllable via VCA
• audio / LFO mode for each OSC
• quantizer (chromatic)
• complex waveform LFO
• single outputs for each OSC / SUBOSC and mix output (w/o SUBOSC)

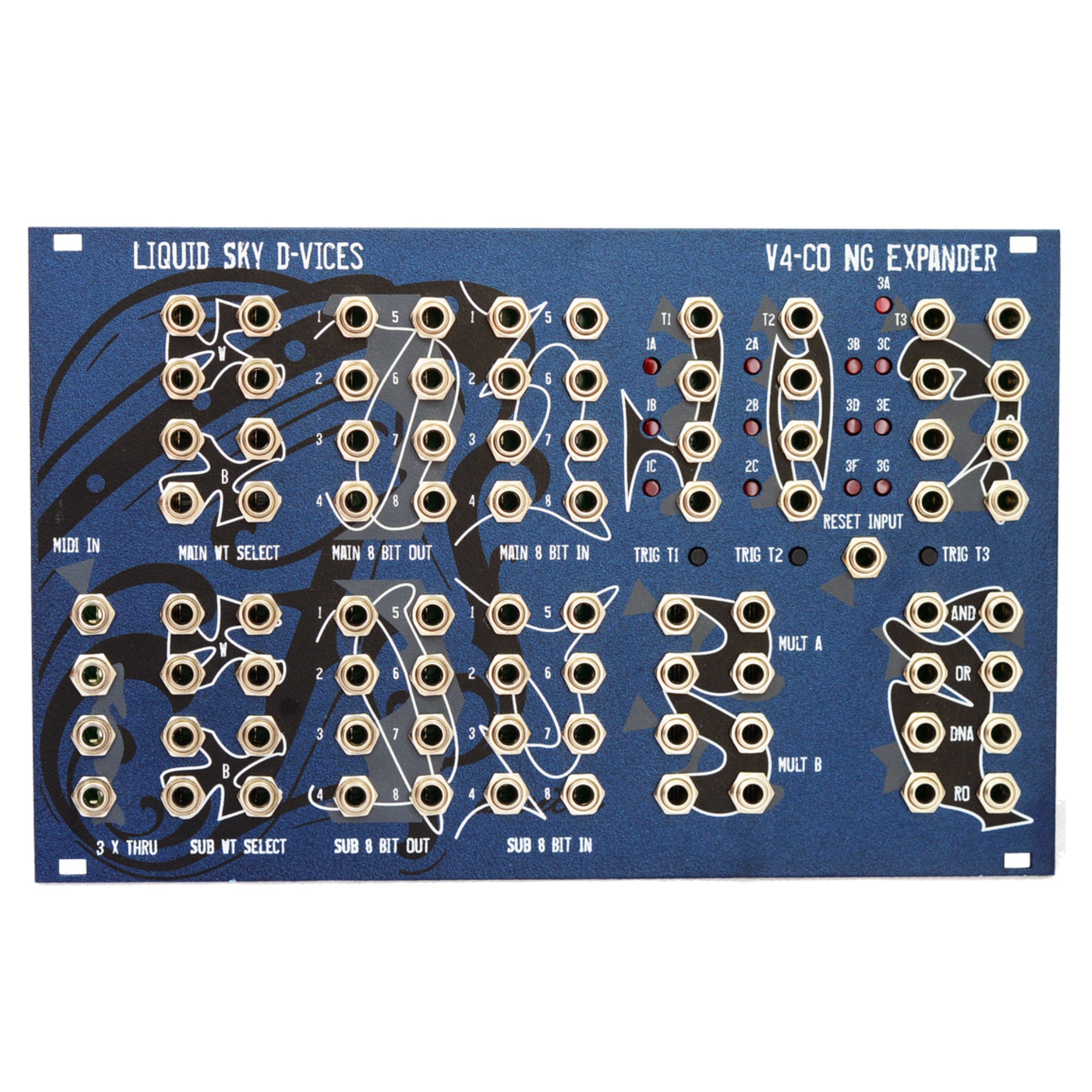

Glithc Expendr or glitch expander

GLITHc is an one of its kind circuit bending expander for the v4co which you can use without being in danger to destroy any hardware

GLITHc is basically 4 modules in one

- REAL circuit bending (you actually manipulate the internal routing)
- Bit-manipulation of
— individual bits for Wave and Bank select
— individual bits of actual wavetable
--- 4 Logic functions: AND/OR/NAND/NOR
---- 3 mini non consecutive sequencer for
----- BANK/WAVE Sequencing
------manipulating Wavetables
-------- multiples
--------- MIDI + 3 Thru

opens up many door (of perception) via MIDI implementation

MIDI implementation:
Switching the waves/banks
Switching the modes for LFO, TRP and V/OKT
MIDI notes, pitch bend and vibrato on CC1
Random selection of two wavetables from the active bank.
The MIDI interface is placed on GLITHc and works exclusively with
the V4CO
