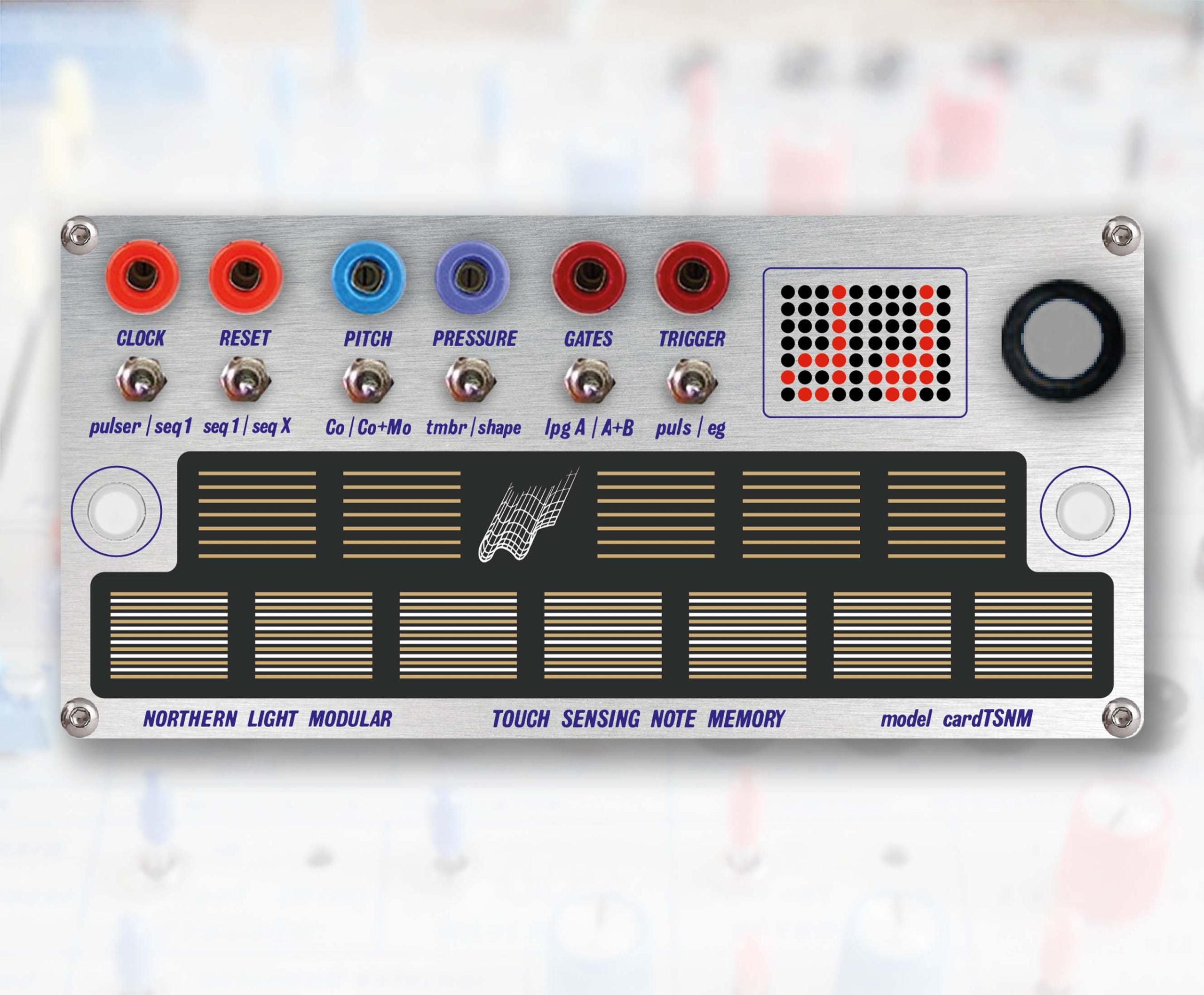

NLM - CardTSNM Touch Sensing Note Memory

Name: NLM - CardTSNM Touch Sensing Note Memory
Brand: Northern Light Modular
Price: 825.00 USD
Availability: InStock

Touch sensing plug-in keyboard for any 208 sound module

Modular Music at your fingertips

Touch Sensing Note Memory is a performance oriented keyboard controller featuring 12 note plates (tunable over 6 octaves) and two transposition buttons (variable transposition distance from -36 to +36 semitones).
Highly accurate pitch (V/oct) output is guaranteed by a precision 16-bit DAC.
Pressure sensing capability of note plates gives maximum human control through the dedicated CV output.
On-board arpeggiator, sequencer, quantiser (with user editable scales),
Pressure CV recorder, envelope generator, random voltage generator, slew limiter, vibrato.

The module can save presets including keyboard layout, sequences and all the options under settings.

Feature set :

Duophonic pitch and/or capacity modulation
Dual gate and/or trigger options, adjustable per channel
Clock and rest options via the 208 pulser and/or sequencer switches
Fully integrated into the 208 system bus and/or banana sockets for optional routings.
Matrix display for visual feedback
Advanced arpeggiator and 32 step sequencer with internal end external clock options
Low power consumption of only 80 mAh

TSNM is a software layer written and managed by www.DOBOZ

NLM has licensed the infrastructure and is offering the cardTSNM with full support by doboz.audio
