Description

1 MU 5U/DotCom

Functions: Clock Divider

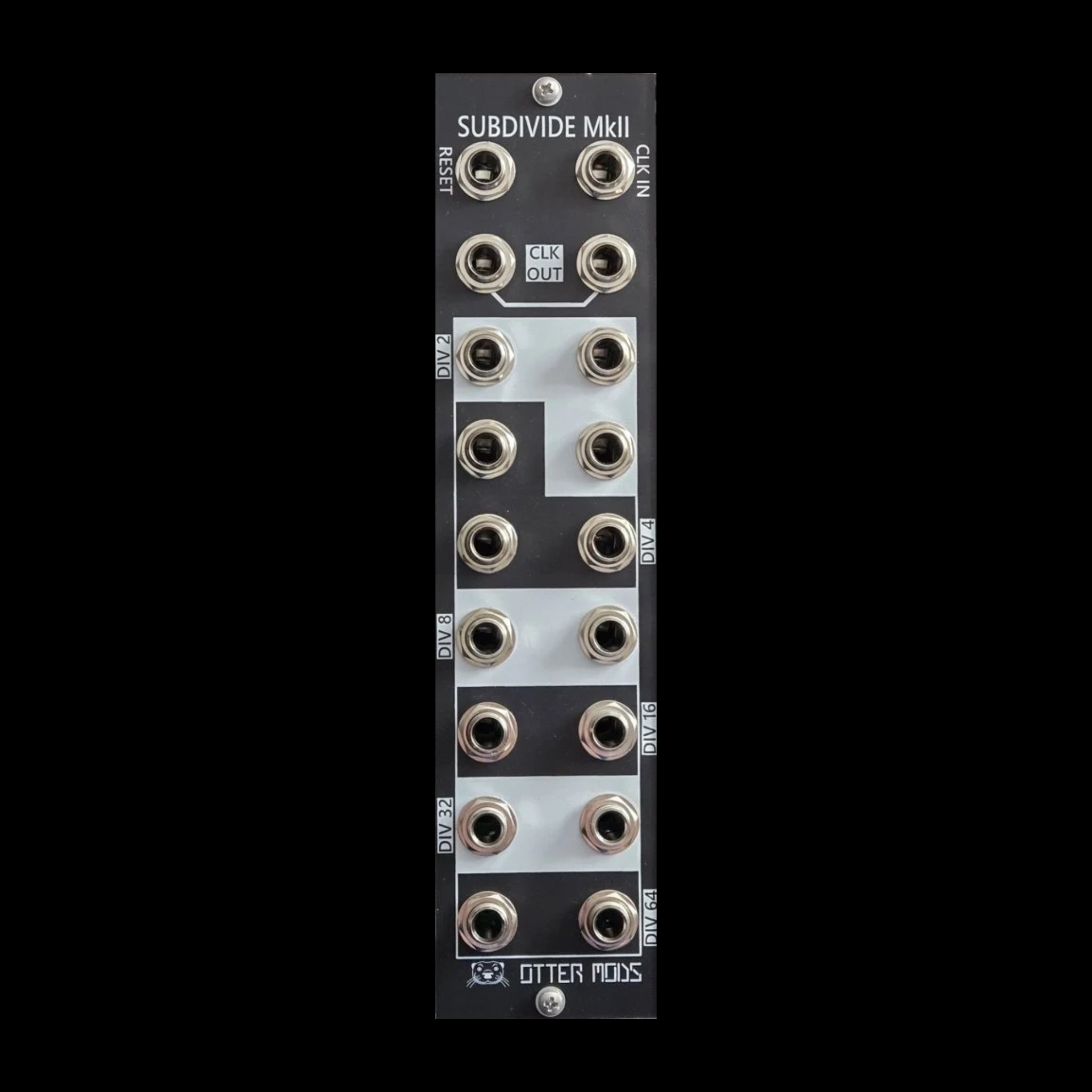

Subdivide Mk2 is a clock divider module with multiple outputs per division, and each output is LED backlit for visual timing reference.

Subdivide Mk2 is a clock divider that requires an external clock source at the Clock input, and can be reset with a pulse at the Reset input. Each of the Div2 and Div4 sections has three outputs. The remaining Div8, Div16, Div32, and Div64 each have two outputs. All output jacks are backlit with different color LEDs for a visual reference of the activity on each division.
