INPUTS
2 x 2.5 VDC (max) 50Kohm) (CV Ins)
2 x 5 mVAC into 600 ohms (Mic. Input)
OUTPUTS
2 x Mono sockets
1 x Headphones
1 x RVG TRIG out (10V spikes)
1 x Scope out
INPUT CONTROLS & CV/GATE
1 x RVG re-select socket
1 x CV/ via CH1 pre-calib.1V/oct.
1 x Gate socket
DIMENSIONS
474 x 415 x 149mm

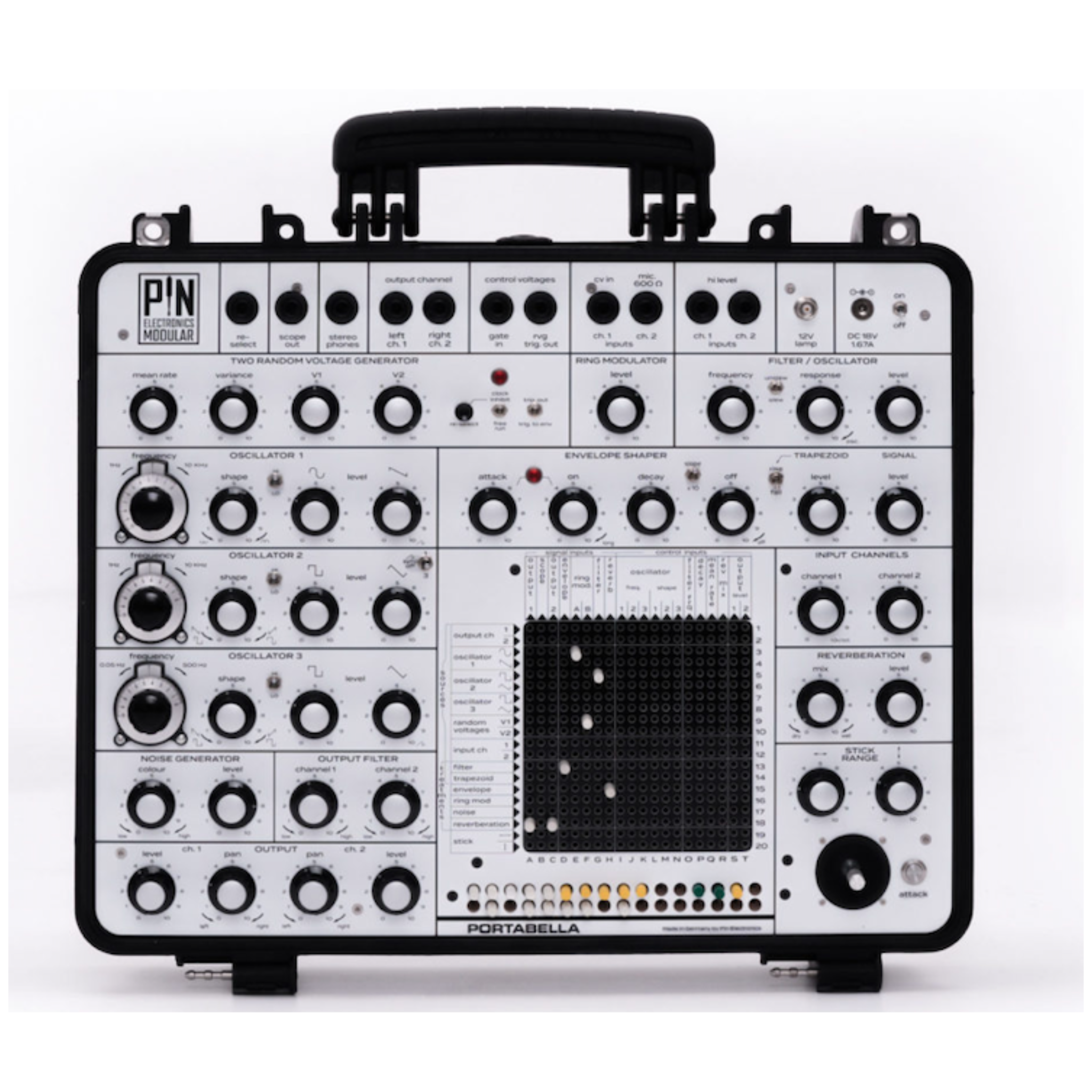

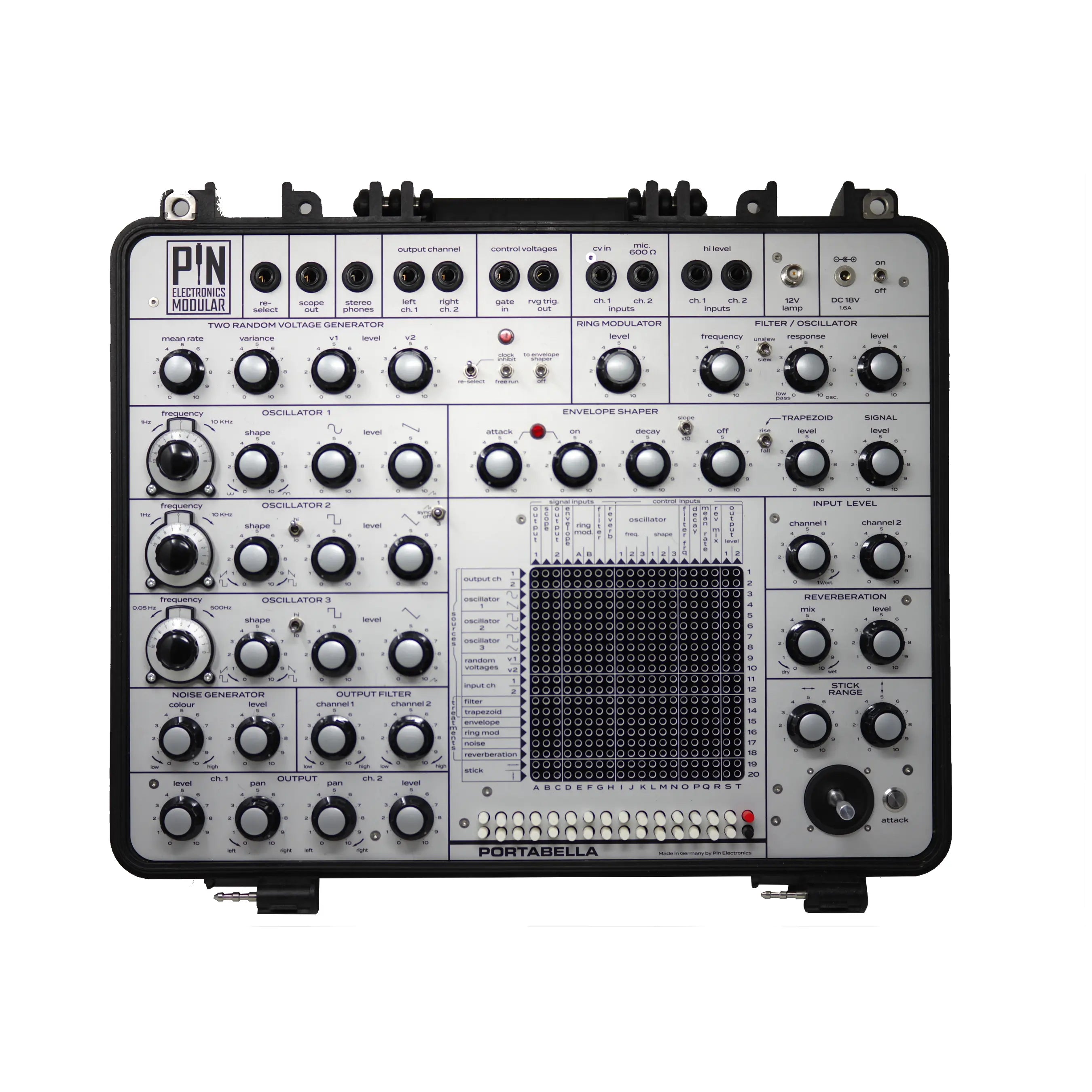

FRONT PANEL
Alu black/silver anodized
WEIGHT
17lb / 8kg
EXT. POWER SUPPLY
18 V/DC 1670 mA 30W 90-240V
LAMP CONNECTOR
12V DC BNC max.100mA
Download quick guide at...
https://pinelectronics.com/data/PortabellaUserManual.pdf
- for a good tracking the Portabella needs 20 min. warm-up time.
- the headphones out are no-panning! And need a pro audio headphone with 250Ω or more.
- the input amps are working inverted - all injected (+) voltages become (-) at the matrix ( 11,12 )
- do not turn the volume of the output amps above 5 - to avoid clipping, hum & noise.
- same for module levels, if you want a smooth sound and processing keep the levels at '5'.
