Tangible Waves - CVADDER-HQ

This module is made to generate CVs which are accurate enough to keep pitch/transposes etc. completely in tune. This could... Read more Read more

Description

This module is made to generate CVs which are accurate enough to keep pitch/transposes etc. completely in tune. This could be for 1V/Octave synthesisers, (doesn't have to be the AE modular). This accuracy applies to Oscillators and Sequence modules so could be useful for many purposes.

If the transposition buttons are not necessary and you could use two precision adders, take a look at the 2CVADD-HQ module

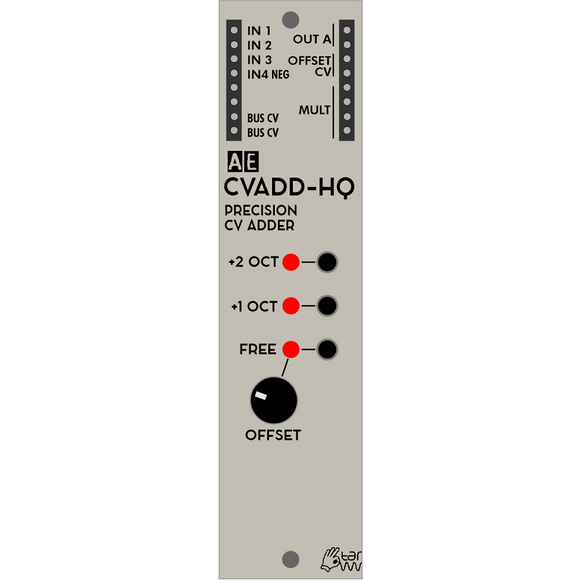

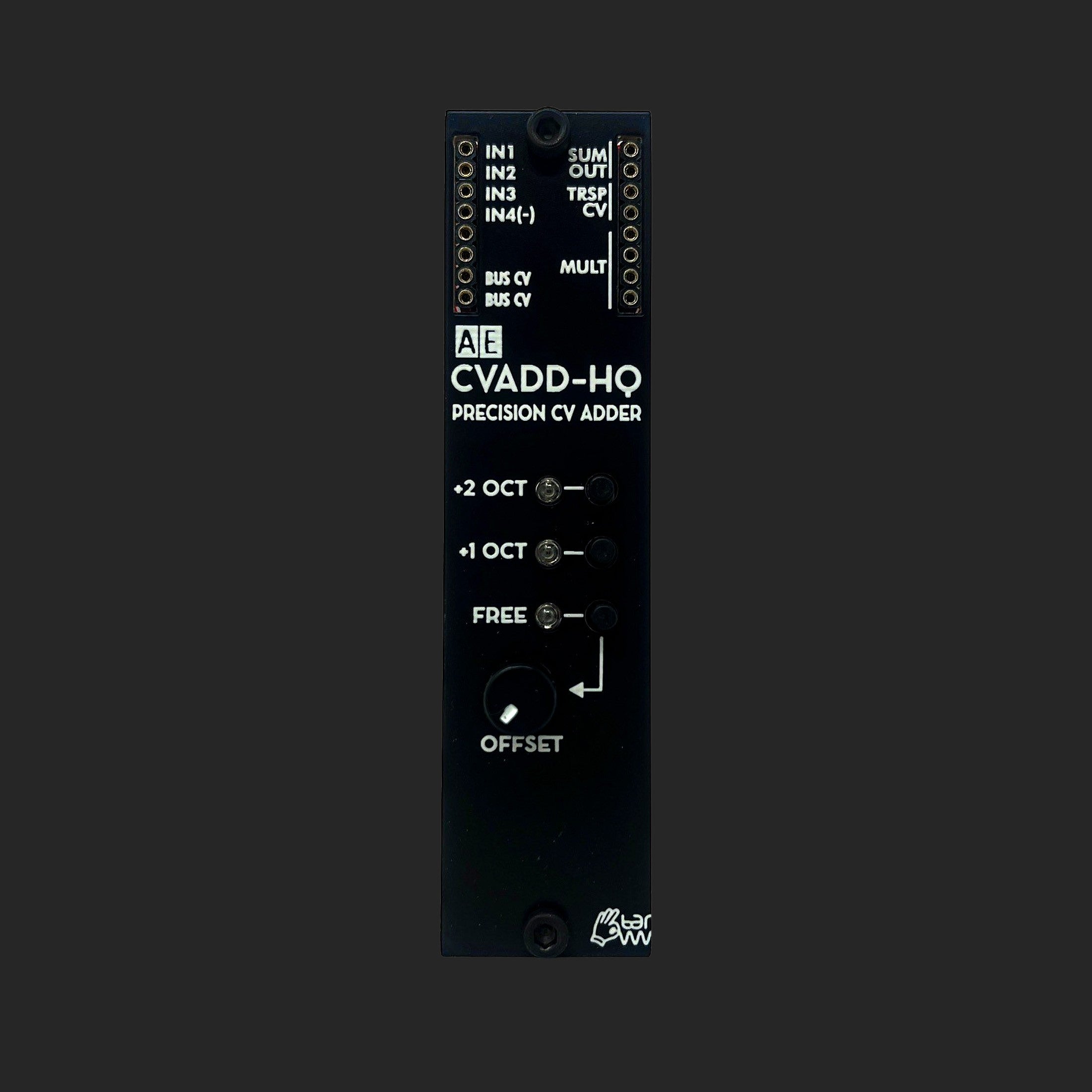

Inputs

1 to 3 - these three inputs are added together
IN A4 Neg - this input is deducted from the other three, i.e. it is an inverter.

Outputs

Out A (x2) - Output of the combined CVs from the 4 inputs.
OFFSET CV (x2) - this is the voltage provided by the control knob/buttons, e.g. if set to 1 octave it will be 1V at this output.
MULT - a passive mixer/splitter separate to the module electronics.

Control

+2 Oct Button - this will add 2V to the CV mix from the inputs, adding 2 octaves if going to an oscillator or filter cutoff.
+1 Oct Button - this will add 1V to the CV mix from the inputs, adding an octave if going to an oscillator or filter cutoff.
Free Button - if this button is selected, the knob below selects the voltage added to the mix from the inputs.
OFFSET Knob - this selects the amount added to the input CVs if the Free' button is selected.

Display

+2 Oct LED - lit when 2 volts are being added to the output.
+1 Oct LED - lit when 1 volt is being added to the output.
Free - Lit when the knob can be used to set the voltage added to the output.
